1. The Mid-Drive Motor: A Climber’s Best Friend
After all, conquering extremely steep inclines is possibly the most difficult and most rewarding aspect of any bike journey. But if you use an electric bike, the type of motor is the most important part in making that climb from dreadful to delightful. While hub motors have their own advantages, mid-drive e-bikes stand in a class of their own when it comes to steep ascents. However, it is not a single aspect, but a mix of mechanical advantages, intuitive power, and quality design. The mid-drive e-bike takes it to the next level and unlocks a new climbing standard. It comes with a variety of advantages beyond just immediate horsepower.
Specifically, the major distinction between a mid-drive and a hub motor is its position and power mechanism. While a hub motor controls the wheel directly, a mid-drive motor controls the pedal crank instead. The pedal crankset is where you exert force with your legs. The motor exerts force in a similar location, allowing it to work in concert with your legs. When you downshift on a mid-drive cycle to make it easier for your legs, you allow the motor to work more efficiently to get up the slope. That coordination and style of power is unique to mid-drive applications and cannot be matched by hub-driven systems. It is akin to having supernatural powers blended with your legs to go up a hill by yourself, facilitating a natural and powerful journey.
Key Mechanical Advantages:
- Leveraged Power: The motor’s power is multiplied by the bike’s rear cassette via gear leverage. Starting on a steep hill or riding up even the steepest grades is a breeze. This is due to the ability of a low gear to provide massive torque for starting on a steep hill or climbing the most taxing grades.
- Peak Efficiency: A motor is more efficient when running at a constant RPM. Using the gears keeps the motor spinning at its most efficient revolutions per minute to avoid bogging down and overheating on difficult climbs. This is because the motor’s optimal RPM can be maintained by selecting the right gear for the hill and your speed.
- Increased Longevity: If the motor is running properly within its recommended RPMs, the motor, battery, and complete drivetrain experience minimal wear and strain. This contributes to the lengthy lifespan of your electric bike. Operating outside the recommended RPMs increases strain, which wears out the battery, motor, and frame.
User Tips for the Hills:
Before starting a climb, shift to an easier gear for less tension and easier operation. Concentrate on keeping your body position stable and your pedaling smooth. When you feel you are hitting your limit, don't be afraid to shift to an even lower gear; it's better for you and the bike.
2. The Power of Torque and Intuitive Control
Gearing provides the mechanical advantage, but the way a mid-drive motor delivers its power is what creates a truly superior climbing sensation. Most high-quality mid-drive systems utilize a sophisticated torque sensor. The sensor detects how much force you apply to the pedals and delivers a proportionate amount of motor aid in real-time. The more force you put into it, the more power it gives, making for an intuitive and responsive ride that feels like an extension of your own ability. This level of control is invaluable on a challenging hill climb, where you may need to alter your power output in an instant to navigate around a rock or rut. It gives you the stability to conquer technical terrain without the abrupt on-or-off feel associated with simpler cadence-based sensors used on many hub motor bikes.
Why Torque Sensing Excels on Hills:
- Instantaneous Response: Power is available the moment you need it, which is critical for maintaining momentum up a steep incline.
- Seamless Power Modulation: The power delivery feels smooth and predictable, allowing for controlled output when traction is limited.
- Enhanced Efficiency: The motor only supplies the power you require, providing drastically better battery range compared to systems that give maximum power no matter how hard the rider pedals.
What to Look for in a Quality Mid-Drive System:
- High Torque Rating: Measured in Newton-meters (Nm), torque defines the rotational force that gets you up the hill. For serious climbing, look for a system rated for 70Nm or higher.
- A Reputable Motor Brand: A quality motor is more likely to come from a well-known brand, trusted for its reliability and smooth operation.
- Multiple Assist Levels: The more levels of assistance you have, the better you can fine-tune the motor's output to the terrain and your desired effort.
3. Mastering Ascents with Optimal Balance and Handling
Cycling is essentially physics, and you feel that reality most strongly when gravity is working against you. The location of the motor has a big impact on a bike’s balance and handling. For instance, front or rear hub motors place a lot of weight at one end, producing an unbalanced bike. A rear hub motor can cause the bike to feel back-heavy, making loss of front-wheel grip a concern on steep climbs. Meanwhile, a front hub motor pulls the bike forward, can negatively affect steering feel, and may cause the wheel to spin out on loose surfaces. In contrast, a mid-drive motor is positioned low on the frame near the bottom bracket, perfectly centered between the two wheels. This centralized mass has a huge impact.
- Low Center of Gravity: Stability is the keystone here. Keeping the weight low makes the bike feel much more grounded and easier to control on uneven terrain and steep gradients.
- Natural Bike Feel: The bike retains the familiar handling of a non-electric bicycle thanks to the well-distributed weight. You don't lose confidence in corners or on technical sections.
- Better Traction: With the weight centered, both the front and rear tires maintain better grip on the slope, preventing spin-outs.
- Fewer Unwanted Wheelies: The tendency for the front wheel to lift during a climb is greatly reduced due to the motor’s central location. This makes climbs safer and helps you maintain control on steep gradients.
- Easy Flat Tire Changes: A massive bonus is that changing a flat tire is very easy. You can remove the front or back wheel as easily as on a regular bike, saving time and hassle.
Key Hill-Conquering Features:

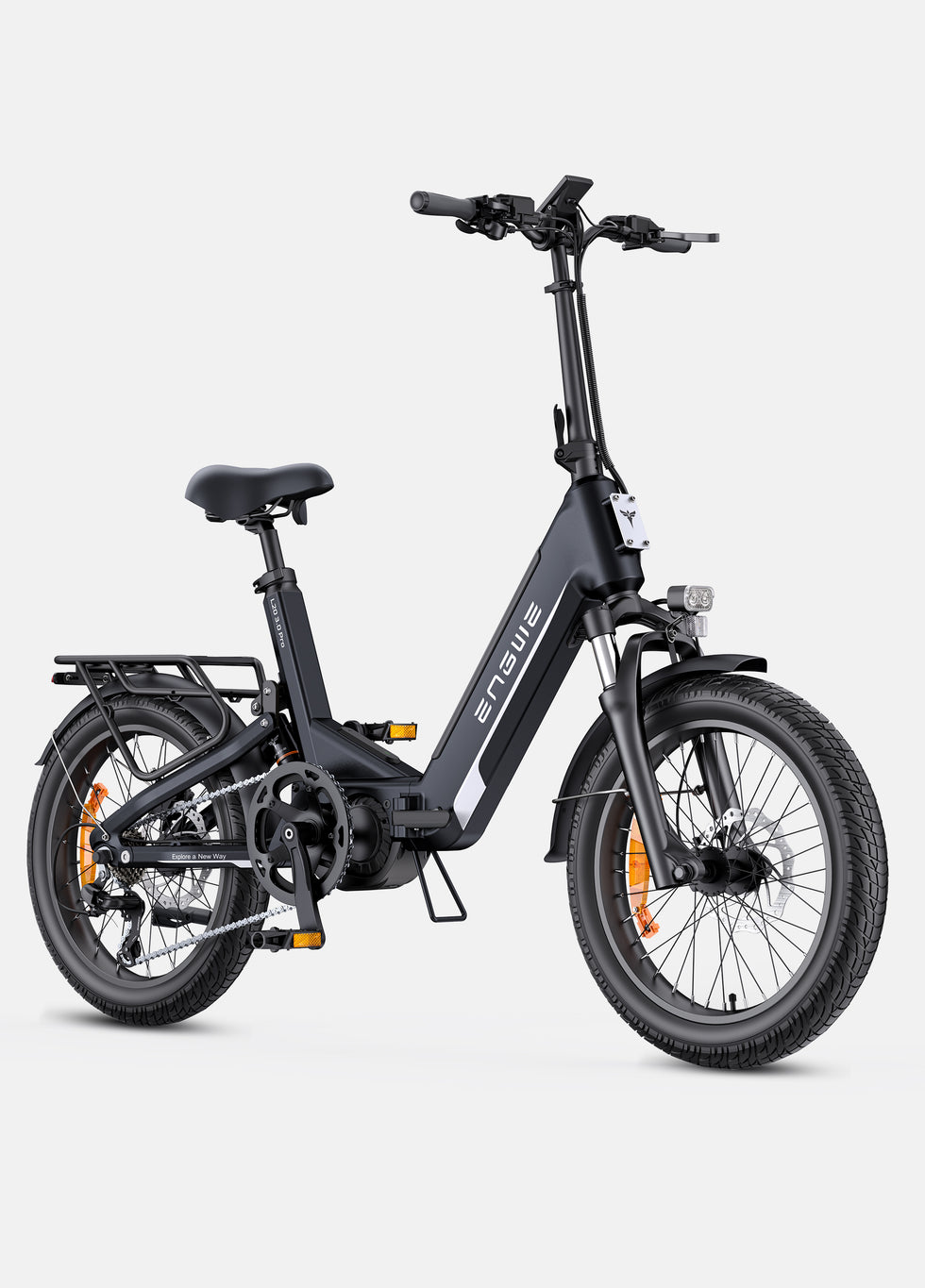

- High-Performance Mid-Drive Motor: This compact bike is driven by a 250W Mivice mid-drive motor which puts an impressive 100Nm of torque at your disposal. This high torque rating can comfortably tackle the steepest city grades without straining. Furthermore, the integrated torque sensor means this power is channeled smoothly and intuitively through your pedal stroke right when you need it most, giving you confidence on the way up.
- Full Suspension System: Although unusual for compact bikes, the L20 3.0 Pro has a full suspension system. This feature not only provides comfort but also improves traction, ensuring the motor’s power stays anchored to the ground on bumpy or poorly maintained roads.
- Exceptional Range: With a robust 720Wh Samsung battery, you can be certain this compact bike has the power to help you climb for more than 160km without range anxiety. It is a lightweight pocket rocket that can handle more than one long hill climb.
Additional High-Value Attributes:
- Robust Drivetrain and Brakes: A sturdy Shimano 7-speed drivetrain is matched with strong hydraulic brakes, allowing for confident control on descents.
- Smart Security Features: The bike features an advanced ENGWE IoT module with GPS tracking, which can be used with an app to protect against theft.
- Practical and Compact: The compact bike is well-designed, practical, and relatively easy to store.
4. Maximized Motor Efficiency and Long Life
Last but not least, mid-drive e-bikes offer a crucial advantage on hills due to the motor’s superior efficiency, which in turn prolongs motor lifespan and improves battery range. Each electric motor has a rotational speed (RPM) range where it operates most efficiently and with the least heat generation. When a hub motor climbs a steep grade, its RPM drops significantly, forcing it to work outside of this optimal range. Consequently, a lot of energy is wasted as heat, and if this occurs regularly, the motor can burn out relatively quickly. However, because a mid-drive motor uses the bicycle’s gears, a rider can simply shift down. This increases the motor’s RPM, allowing it to work within its optimal range even as the bike’s speed decreases. This is not only better for the battery but is also vital for the motor’s long-term health. Due to the significance of this, here is a summary table.
| Feature | Mid-Drive Motor | Hub Motor |
|---|---|---|
| Gearing Advantage | Uses bike's gears for mechanical advantage | Independent of bike's gears |
| Optimal RPM on Hills | Maintained by shifting gears | Drops significantly, operates inefficiently |
| Efficiency on Climbs | High | Low |
| Heat Generation | Minimal | High (risk of overheating) |
| Motor Strain & Lifespan | Low strain, leading to a longer life | High strain, leading to a shorter life |
Tips for Extending Motor and Battery Life:
- Use Your Gears Liberally: Think of the gears as your motor’s best friend. The single most effective thing you can do for your motor’s health on hills is to shift often to maintain a consistent pedaling cadence.
- Avoid “Lugging” the Motor: Trying to power up a steep hill in a high gear puts an unreasonable amount of strain on the motor and drivetrain. Just as you wouldn’t start your car from a standstill in 5th gear, avoid using the highest-resistance gears on steep climbs.
- Invest in Drivetrain Maintenance: A clean, well-lubricated chain, cassette, and gearshift system will reduce friction and help the motor transmit its power to the wheel efficiently. This results in better performance and saves money on repairs down the road.
Such a bicycle is certainly the new, all-encompassing solution to your hill climbing requirements.
5. Common Questions
-
Q1: Are mid-drive e-bikes harder to maintain?
A: Not at all. Regular maintenance is similar to a standard bicycle and involves keeping the chain, chainring, and cassette clean and properly lubricated.
-
Q2: Can I still get a good workout on a mid-drive e-bike?
A: Absolutely. The bike responds to your effort thanks to the torque sensor. You can use low-assist settings or even turn the motor off to customize your ride. You are fully in charge of your workout level.
-
Q3: Is a high-torque mid-drive system suitable only for professional riders?
A: Absolutely not. While powerful, these systems are typically very intuitive and stable. Their efficiency and control make them excellent for riders of all skill levels, including beginners looking to conquer hills safely and comfortably.
